GP-Probe DIN L1
Designed for telcos to monitor GNSS interference and synchronization quality
Cost-effective GNSS probe with built-in RF blocker, onboard GNSS interference detection and LUA scripting. Compatible with GP-Cloud
GP-Probe DIN L1 covers three primary applications:
· GNSS interference detection and classification
· PPS accuracy monitoring,
· GNSS signal quality analysis, and logging.
The device is easily installed between a GNSS antenna and a receiver or time server.
Key Features:
Built-in PPS Phase Measurement Unit. You can connect a PPS output of your time server to a GP-Probe DIN L1 and receive real-time notification of PPS phase accuracy degradation.
Embedded LUA script engine and debugger for custom user scenarios. You can develop your own LUA script to respond to interference or GNSS signals anomaly. A terrific option for quick integration of the device into your existing infrastructure.
65 MHz basic RF spectrum monitoring feature.
Validated PPS signal output.
The embedded real-time operating system FreeRTOS guarantees high availability and cybersecurity.
Secure firmware auto-update engine.
Embedded self-diagnostic and dispatching all error messages to the cloud.
Web interface for configuration.
Easy-to-Install

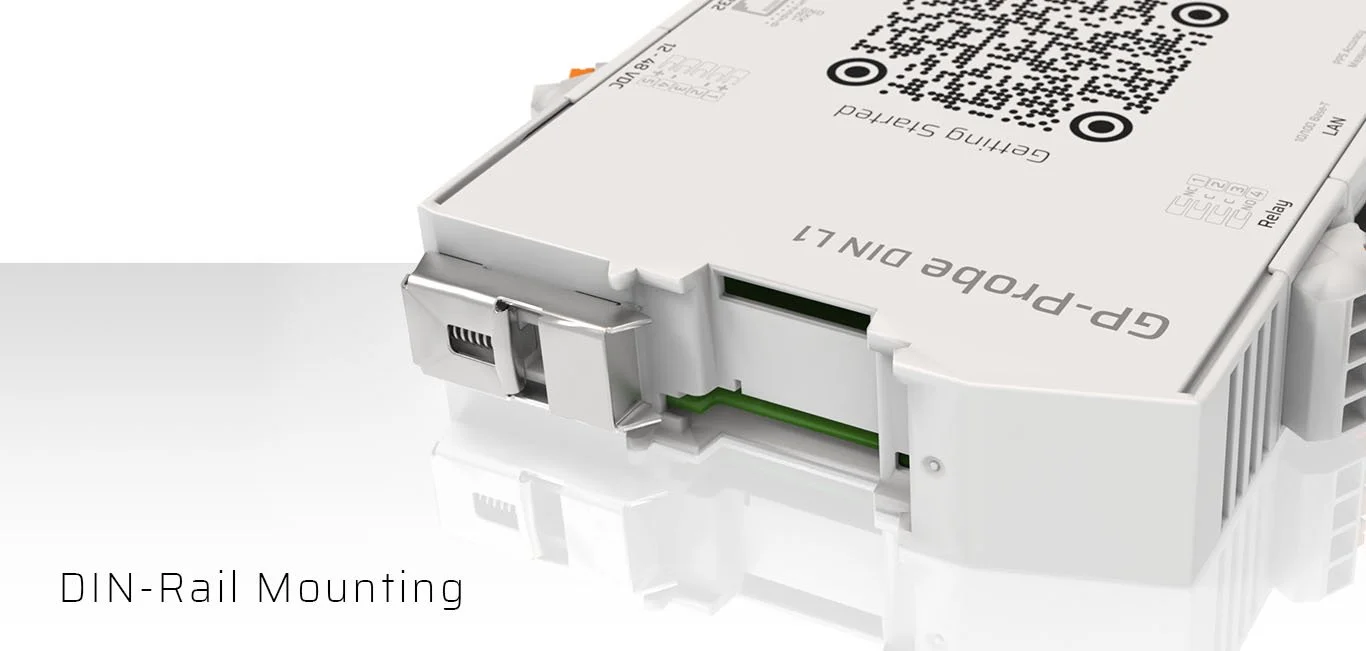

The device is installed and configured in minutes thanks to the DIN-compliant mounting and the integrated Web Configuration Panel
Download the full specification - Datasheet Here
Key Benefits
Integrated GNSS RF switch with an embedded jammer. You can connect the device between a GNSS antenna and a protected time server. If GNSS signal anomalies or interference are detected, the GNSS output port is disabled. To protect against powerful spoofing attacks, there is a built-in jammer that assures blocking of fake signals of any power.
GNSS RF Switch With Jammer
Guaranteed High Availability And Cybersecurity
Cyber-Safe, 24/7 - GP-Probe utilizes a secure, Non-Linux, real-time operating system that is immune to cyber threats. The combination of built-in hardware fault monitoring and a secure firmware update engine ensures continuous 24/7/365 critical infrastructure defence.
Onboard Signal Processing
Onboard Signal Processing Option – the device can detect anomalies of GNSS signal and interference without connection to GP-Cloud.
Embedded LUA script engine
develop your own LUA script to respond to interference or GNSS signals anomaly. A terrific option for quick integration of the device into your existing infrastructure.
GP-Cloud Supported
Supported by GP-Cloud to provide centralized monitoring of your entire GNSS-dependent infrastructure. The combination of two features – GNSS interference detection and PPS accuracy tracking – makes the device perfect for ensuring robust and reliable synchronization systems for mission-critical infrastructure.
Auto-Update
Secure firmware auto-update engine.
Software Options
Subscription to GP-Cloud
With GP-Cloud, you can monitor all your connected GP-Probes in real-time, receive notifications of detected events, and log all data for post-analysis. Get In Touch.
GP-Probe DIN L1 opt.: LUA
The software option allows you to create custom LUA scenarios for controlling remote equipment via RS232. It includes a built-in LUA interpreter and debugger. Upon detecting interference, a tailored reaction scenario will be automatically executed. Get In Touch.
GP-Probe DIN L1 opt.: OSP
Onboard signal processing software option for interference and anomaly detection in GNSS signals without connecting to the GP-Cloud servers. The probe operates completely independently. Get In Touch.
GP-Probe DIN L1 opt.: STREAM
This software option is designed for those who want to integrate GP-Probe DIN L1 into their own spoofing and jamming detection systems and develop custom detection algorithms. It enables streaming of raw GNSS data via websocket and allows saving all raw and processed data on a computer disk for further post-analysis. Get In Touch.
